Underground Magnetics Mag X COR
Underground Magnetics Mag X COR
Drill with Confidence and Ease

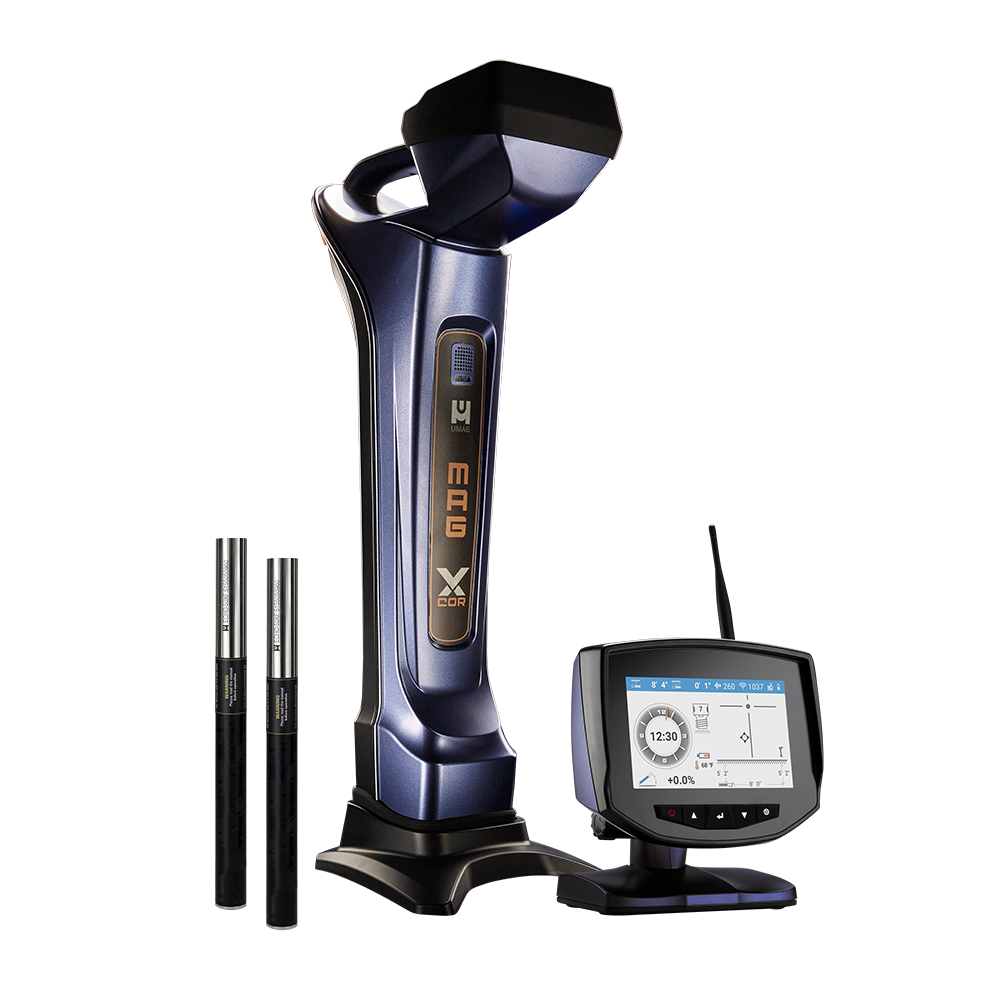

The Underground Magnetics Mag X COR combines essential locating features with the powerful field performance HDD crews demand — in one streamlined, easy-to-use system.
Key Features
Simplicity Meets Power
- Professional-grade HDD locating in a user-friendly package

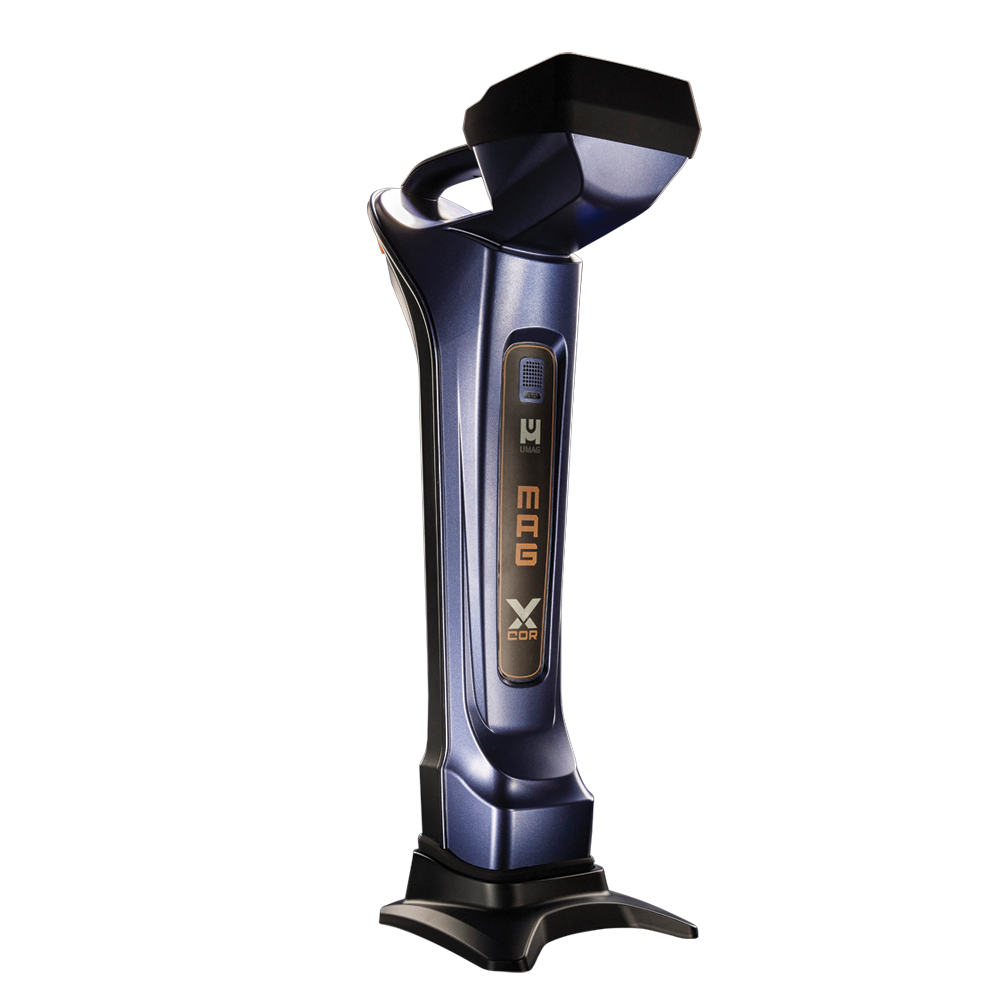

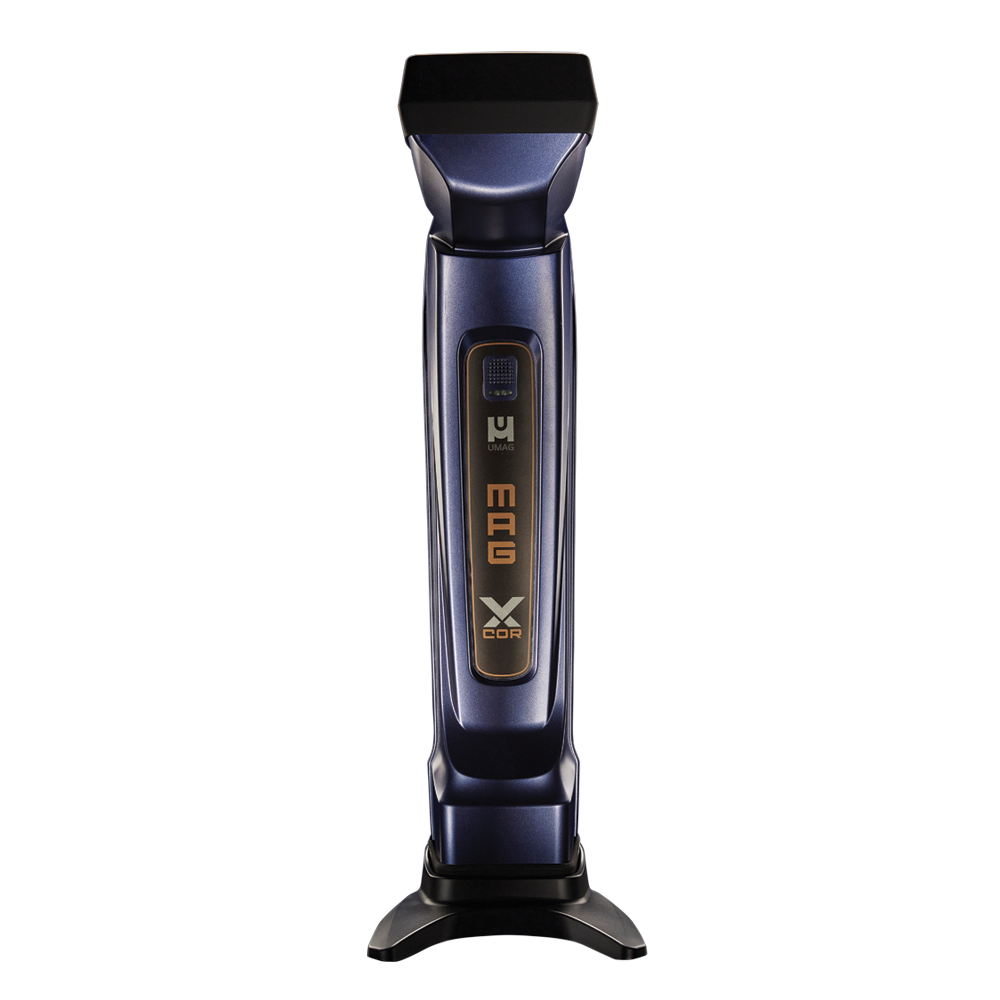

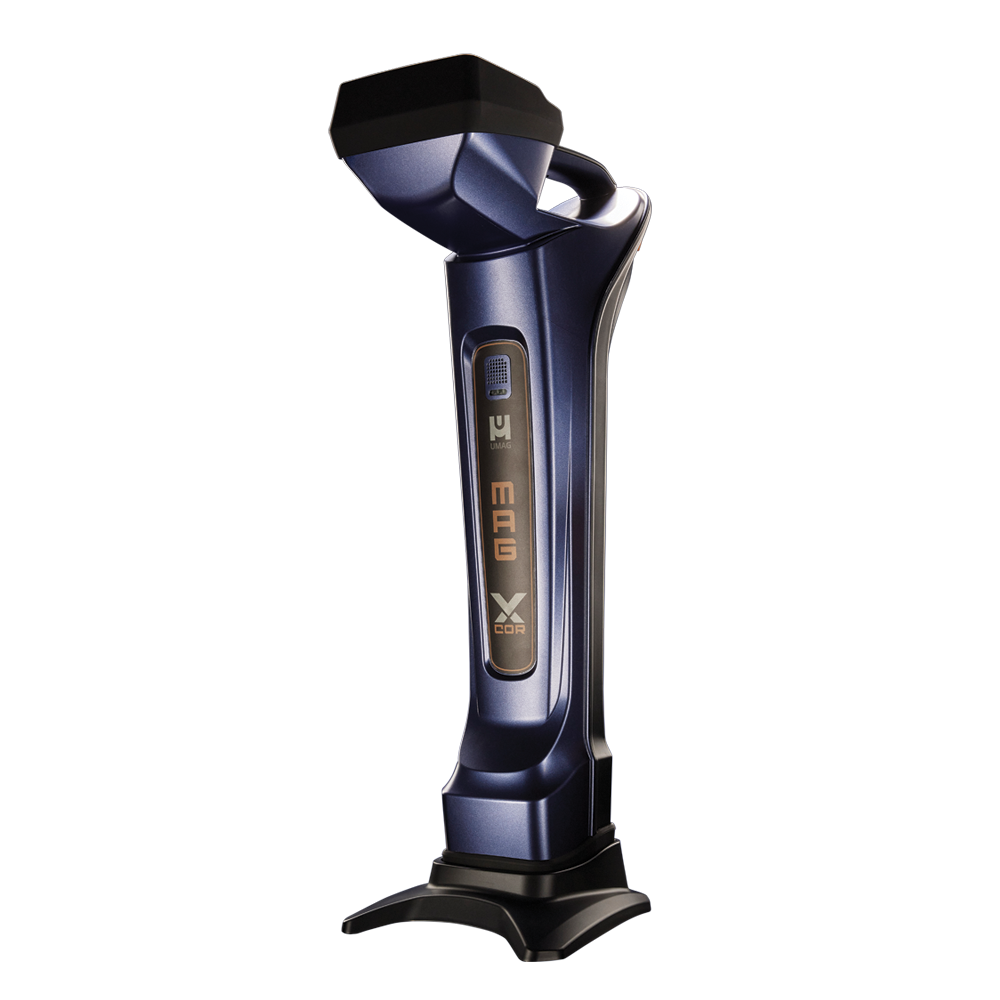

- Rugged stand-up receiver with a 4" high-contrast reflective LCD display

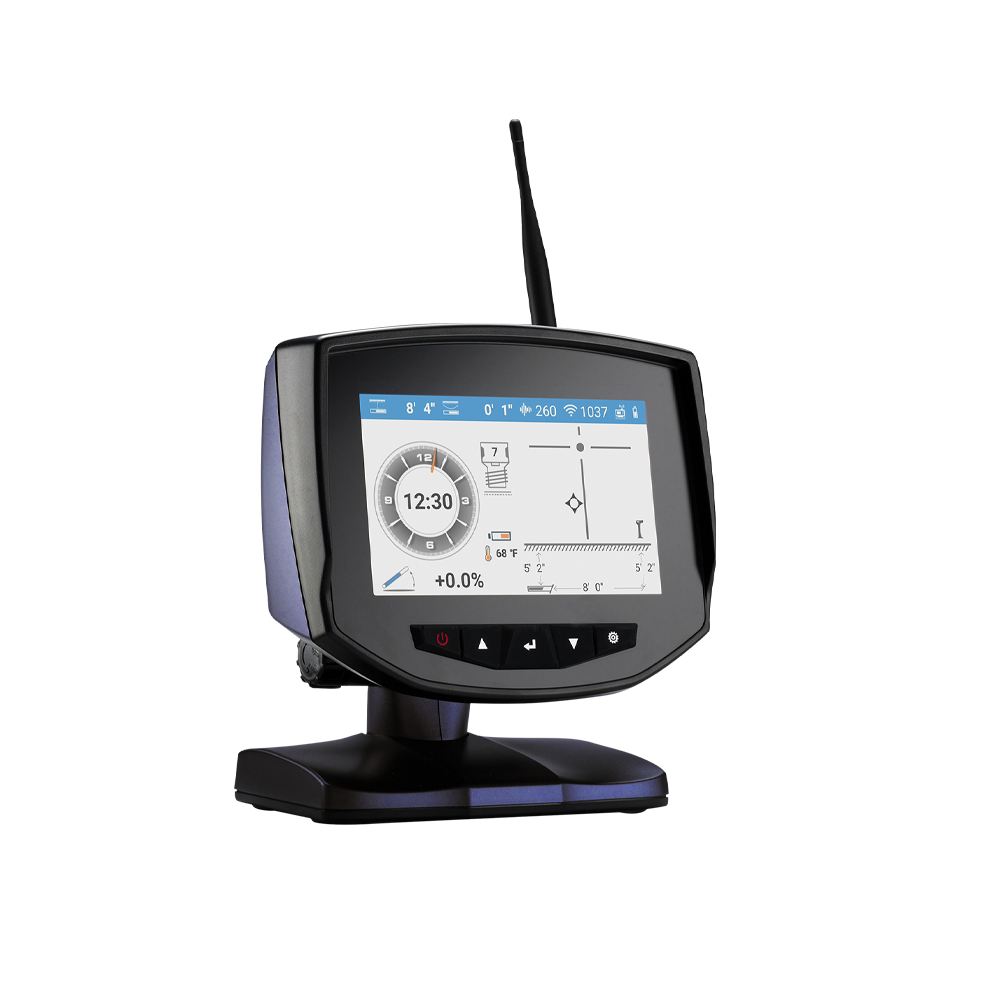

- 7" Android-powered touchscreen drill display with a bright, responsive interface
Effortless Tracking
- Real-Time Tracking on the Fly — fast, accurate, and dependable locating for daily drilling operations
- Integrated Data Logging — one-touch recording directly from the remote drill display
- Detailed rod-by-rod and chart views with the ability to edit and document utility crossings
- Logs can be emailed from the display or synced to the UMmaps web portal
The Mag X COR delivers the perfect balance of advanced functionality and intuitive design — so your crew stays on target, on time, and on depth.
| Weight | 8,5 lbs |
|---|---|
| Dimensions | 29 x 9 x 13 in |
| System Frequency |
16 Frequencies, .325kHz - 41kHz |
| Water Resistance |
IP65 |
| Telemetry |
4 radio channels with range up to 3000 ft |
| Rechargeable Lithium Battery Pack |
12.5V |
| Battery Life |
Up to 50 hours |
| Compatible Transmitters |
Echo XMini / Echo 50 / Echo 50x / Echo 50XF / Echo 60 / Echo 75XF / Echo 90 / Echo 110 |
Built for the Bore. Designed for the Operator.
The Underground Magnetics Mag X COR is a professional HDD locating system engineered to give drill crews exactly what they need on the job — accurate data, clear visibility, and controls that work as fast as they do.
At the core of the system is a rugged stand-up receiver with a 4" reflective LCD display, readable in direct sunlight or low-light conditions without compromise. The 7" Android touchscreen drill display puts real-time bore data front and center — responsive, bright, and intuitive enough that operators spend less time reading the screen and more time drilling.
Tracking-on-the-Fly keeps locating fast and reliable throughout the entire bore, from first rod to final pullback. No stopping. No guessing. No lost footage.
Data management is built into the workflow, not bolted on. One-touch logging captures rod-by-rod records directly from the drill display. Rodwise and chart views give operators a complete picture of the bore path, with the ability to edit entries and document utility crossings on the spot. When the job is done, data goes out by email or syncs straight to the UMmaps web portal — keeping records clean and the next crew informed.
The Mag X COR is the locating system for HDD professionals who expect their equipment to keep up — underground, on schedule, and on target.
